BUILD YOUR OWN CABINET
WHAT MAKES A CABINET A CABINET?

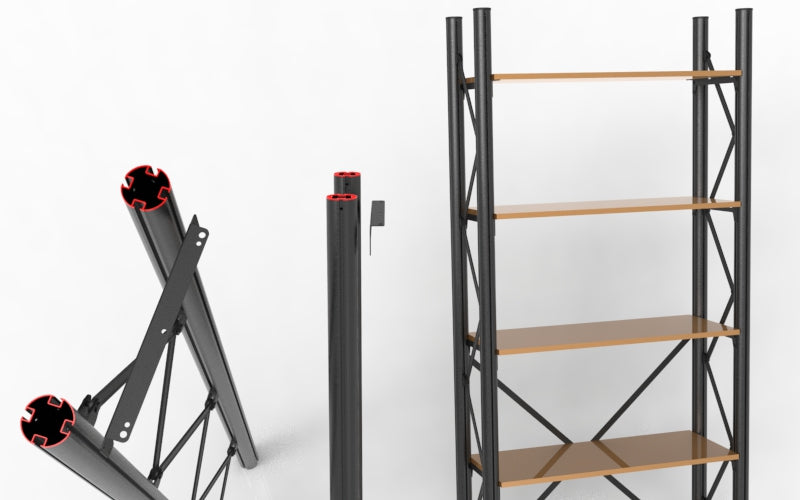

Cabinet side panels
What makes Truzz cabinets unique is the aluminium profile. This profile features a specially designed extrusion shape that allows a sliding nut to be inserted easily into the main tube.
The sliding nut enables various components to be securely attached to the profile. In lighting structures, it can be used to mount a track lighting rail, while in cabinet applications it is used to install shelf supports. This allows the same Truzz structure to transform effortlessly from a decorative support system into a fully modular cabinet system.
This intelligent profile design makes Truzz flexible, expandable, and suitable for a wide range of interior applications.
Easy adding
Each cabinet side is supplied with a standard number of sliding nuts. (See the product specifications for the exact quantity.)
Shelves can be mounted anywhere along the full length of the profile. If you want to add more shelves yourself, simply slide an additional sliding nut into the profile. To do this, first remove the end stop that closes off the profile.

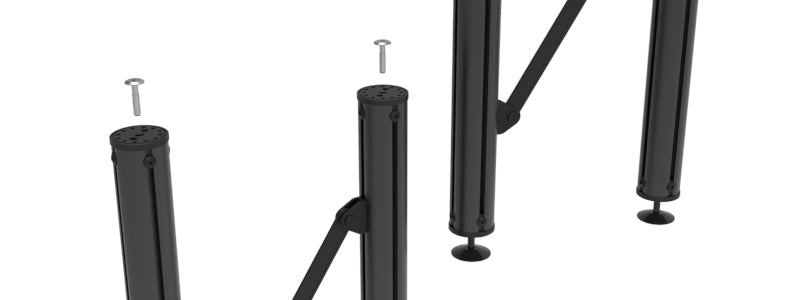

How are the uprights supplied?
Top: End cap with M6 thread and screws for mounting the cabinet top.
Bottom: End cap with M8 threaded insert and an adjustable M8 leveling foot.

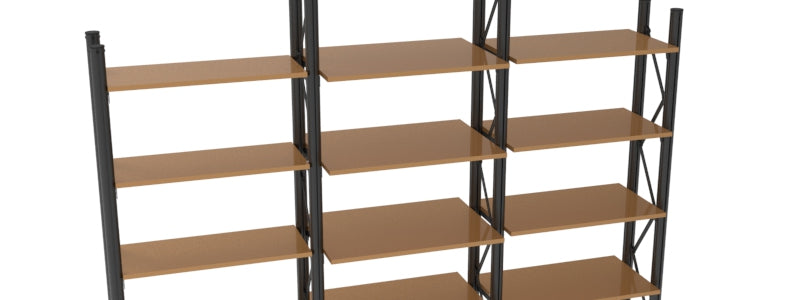

Which shelves can be used?
In principle, any shelf can be used with this cabinet system. However, make sure the shelves are not too long, as they may start to sag. The cross brace is suitable for a maximum centre-to-centre distance of 110 cm between the cabinet sides.
The shelf depth is entirely your choice. The shelves can be flush with the cabinet or extend beyond it.
Please note: If the shelves extend beyond the back of the cabinet, a cross brace cannot be installed.
